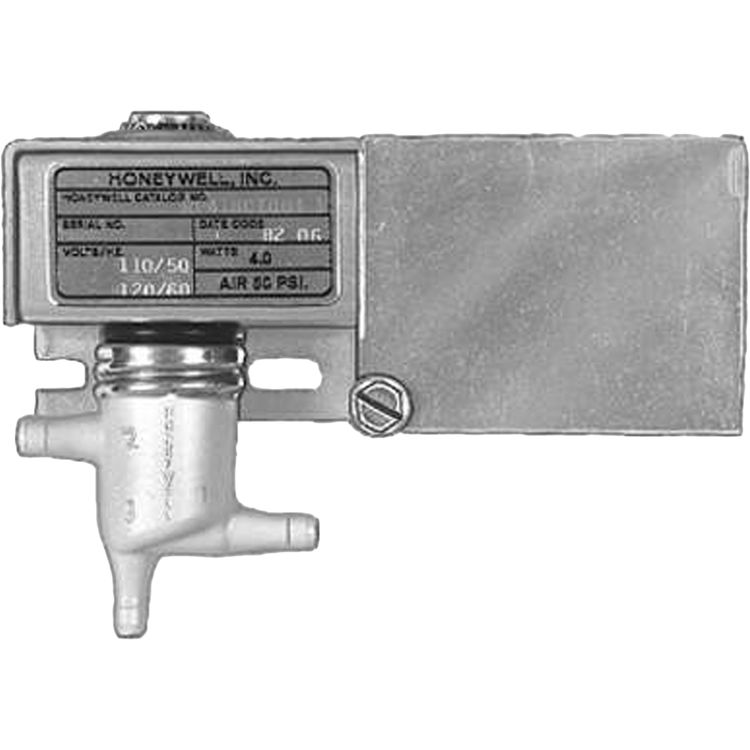

Honeywell RP418A1099/U Surface Mounted Electric / Pneumatic Relay

SKU: 375908

$69.45/ea
Save 62% · Retail: $181.41

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$71.24/ea 2
Order From Manufacturer
Available to Ship in 4-5 weeks
$69.45/ea

About the Honeywell RP418A1099

Honeywell RP418A1099/U Surface Mounted Electric Pneumatic Relay. Pneumatic-electric switches convert a controller's pneumatic signal to electrical switching, providing start and stop control. Replacements available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell pneumatic/ electric switches.

Product Details

Manufacturer: Honeywell
Type: Electric
Style: Pneumatic
Fuel Type:
Mpn # RP418A1099
Weight 0.85 lbs.

Product Features

  • Electric / Pneumatic Relay
  • Surface
  • 50 Hz; 60 Hz
  • Component Recognized File: MP1502, Vol. 11, Sec. 1,UL Listed: Guide Y10Z
  • Listed: File No. LR50900
  • Junction Box and 15 in. (380 mm) leads
  • 5 to 95% RH
  • 220 Vac at 50 Hz; 240 Vac at 60 Hz
  • Barbed fitting for 1/4 in. O.D. plastic tubing
  • 0.075 Cv minimum
  • Energized: ports 1 and 3 connected, port 2 blocked,De-energized: ports 2 and 3 connected, port 1 blocked
  • 0.42 scfm (200 mL/s) at 20 psi (138 kPa) supply with 1 psi (7 kPa) pressure drop
  • 2 7/8 in. high x 3 13/16 in. wide x 1 1/4 in. deep
  • 73 mm high x 97 mm wide x 32 mm deep
  • 50 psi, maximum
  • 340 kPa, maximum
  • 0 F to 100 F
  • -18 C to +38 C
  • Junction Box
