Honeywell VC6834ZZ11/U Floating Actuator

SKU: 378439
Minimum Quantity: 1

$80.81/ea
Save 63% · Retail: $218.16

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$80.81/ea 2
Order From Manufacturer
Available to Ship in 4-5 weeks
$80.81/ea

About the Honeywell VC6834ZZ11

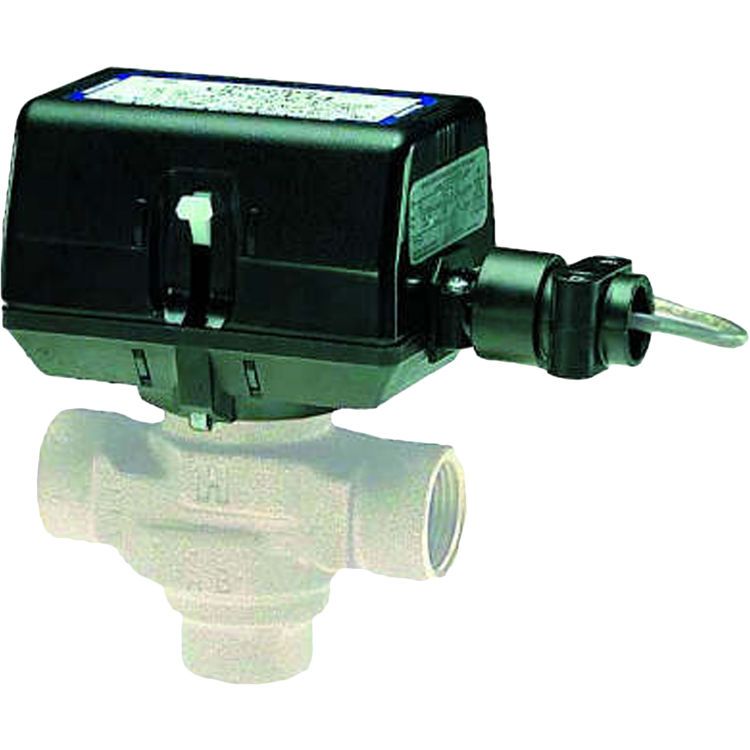

Honeywell VC6834ZZ11/U Floating Actuator for VC Series Valves. Actuators control central air, fan coil systems, radiators and convectors. Depending on the model, it can be controlled by a Low Voltage SPST or SPDT switch, pulse-width modulated 24 Vac signal, or Floating input, modulating controller.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # VC6834ZZ11
Weight 1.80 lbs.

Product Features

  • HVAC
  • 50 Hz; 60 Hz
  • Listed 94-5V
  • CSA Certified: LR1322-367
  • Plenum-rated cable
  • 5 to 95% RH, non-condensing
  • 24 Vac
  • Driving-- 6 VA
  • -40 F to +150 F
  • -40 C to +65 C
  • 32 F to 150 F
  • 2.8 in. high x 3.7 in. wide x 2.7 in. deep
  • 0 C to 65 C
  • 2.2A (5 to 110 Vac)/1.0A (110 to 277 Vac) Inductive; Min. DC switching capability: 5 mA @ 24 Vac.
  • Double Insulated,IP40
  • 1
  • 95 C
  • 203 F
  • Valve
  • SP3T (tri-state) Floating; 24 Vac
  • Stays in place
  • SPDT
  • 70 mm high x 94 mm wide x 68 mm deep
  • 0.4 in.
  • 10 mm
  • Molded strain relief, conduit clamp
  • Driving @ 60 Hz (sec)-- 120 sec
  • 60 psid
  • 400 kPa
  • Self-alignment
  • Lever
  • 5 ft.
  • 1.5 m
  • Flexible conduit adapter
  • 3000 Series 2-way and 7000 Series VC valve bodies only
  • 0.84 lb
  • 0.38 kg
  • Plastic housing
  • Direct Coupled
