Hydro-Rain HRM-100-DB-CP HRM 100 Double Swivel Coupling

SKU: 180125

Save 41% · Retail: $4.38

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Hydro-Rain HRM-100-UU-CP

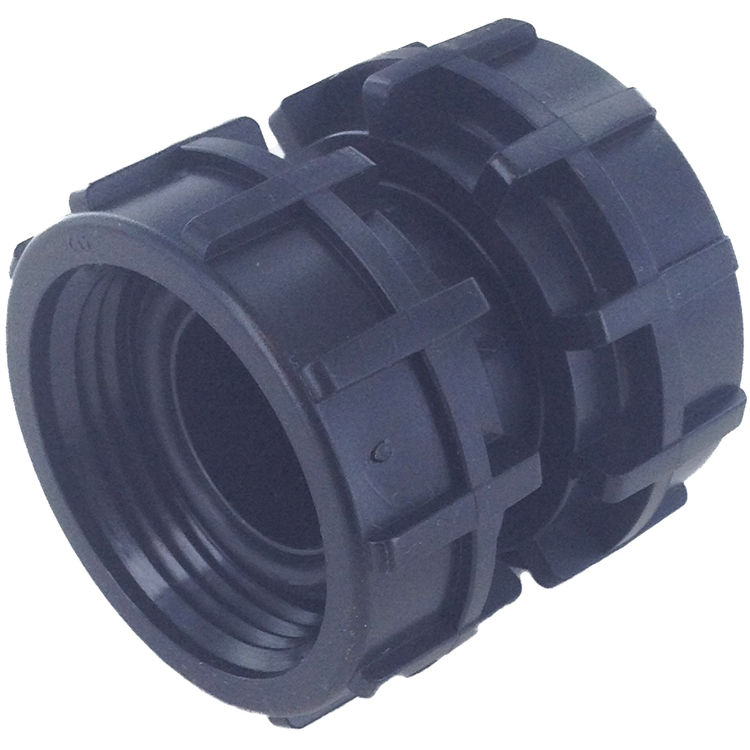

The Hydro-Rain HRM-100-DB-CP is a Manifold swivel Coupling to connect more than one manifold systems together. The manifold system, the HRM Series, provides a nontoxic gluless installation and convenient servicibility. The HRM100DBPC is a swivel coupling designed to transition between single, double, and tripple manifold ports quickly and easily. The Compact design and expandability of the HRM Manifold System maximizes the valve box area while providing quick and simple modification when you need it. For use with any sprinkler system designs

Product Details

Product: Parts and Accessories
Use: Water
Faucet Part Feature: Couplings
Mpn # HRM-100-UU-CP
Weight 0.20 lbs.

Product Features

  • No Cutting, Priming, Gluing or Waiting- Standardized and ready to go when you are.
  • High Deflection Temperature-Withstands pressure of 350 PSI and ambient temperature of 120F.
  • Patent Pending Swivel-Eliminates the need for primer and glue, and serves as the tool for threading the adapter into the valve.
  • True 1" I.D. and Ultra Smooth Core-Maximizes flow and minimizes friction loss.
  • Three-Year Warranty-Hydro-Rain ensures full quality performance for the warranty period or well replace it.
  • Max Working Pressure: 200~250 PSI (at 73 F)
  • Burst Pressure: Exceeds 350 PSI (at 73 F)
  • Dimensions: HRM-100-3P-BD: Length 10" x Width 2.5" HRM-100-2P-BD: Length 6.25" x Width 2.5" HRM-100-2P-BD: Length 3" x Width 2.5"
  • No Guesswork and No Rework-Takes the estimation out of the installation process and eliminates wasteful, costly mistakes.
  • Fewer Callback and Faster Service-Built to high industry specifications so you can be sure youre getting watertight seals the first time and every time-which means fewer callbacks and faster service-its never been easier.
  • No Primers or Glues-All connections are buttress thread swivel and Mipt, eliminating the need for any toxic chemicals.
  • Blu-Lock Compatibility-Factory-installed Blu-Lock adapters allow you to go straight out of valves to headers and laterals with environmentally-friendly Blu-Lock pipe.
  • Drip Zone Compatibility-The HRM 100 can handle up to four HRZ 100 drip control zones in a standard rectangular valve box, minimizing material waste.
  • O-Ring Shape and Volume-Allows more torque and compression to satisfy a wider variety of angles. Over 4X the size of the leading competitor.
  • Sealing Surface-Has twice the surface area at critical connections between fittings and manifold.
  • Buttress Threads-Provide exceptionally high axial thrust so you can crank them hard and they have extremely low friction properties so that you can hand tighten the fittings fast and effortlessly.
