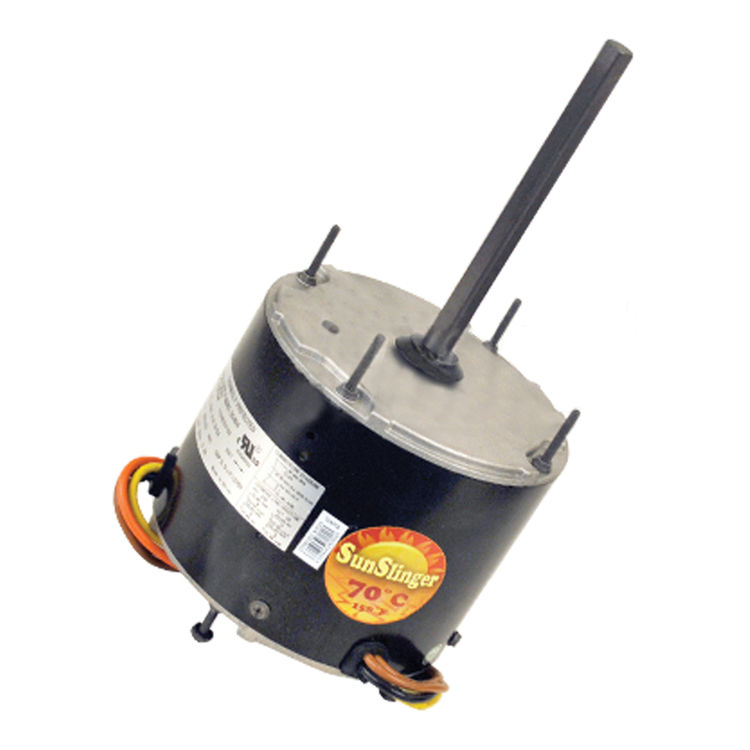

Mars 20746 Mars 20746 PSC Condenser Fan Motor, 1/2HP 208-230V 825 70C CF MTR

Mars 20746 PSC Condenser Fan Motor, 1/2HP 208-230V 825 70C CF MTR

SKU: 246445
$ 137.16 / ea

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 3-4 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks
$137.16/ea

About the Mars 20746 PSC Condenser Fan Motor, 1/2HP 208-230V 825 70C CF MTR

Save now and get the Mars 20746 PSC Condenser Fan Motor, 1/2HP 208-230V 825 70C CF MTR while it's still available here at PlumbersStock.com. This PSC Condenser Fan Motor is manufactured with integrity. Mars makes products that we're proud to carry. Make sure you have the right part number, and if you aren't certain, try contacting us.

Manufacturer: Mars
Product: Fan Motor
Electrical Voltage: 208-230V/60Hz
Amperage: 2.8 Amps
RPM: 825 RPM
Motor Type: Single Phase
Motor Size: 1/2 HP
Mpn # 20746
Weight 1.00 lbs.
  • 1/2HP 208-230V 825 70C CF MTR
  • Motor Type PSC Enclosure TEAO H.P. (Max.) 1/2 Voltage 208-230 Speeds 1 Hz 60 Rotation REV RPM Range 825 NEMA Frame Size 48 Phase Single Standards CUL FLA 2.8 Mount All Angle Bearing Ball Shaft Length Inches 7 Shaft Dia Inches 1/2 Thermal Protection Auto Ambient Deg C 70 Ins. Class Class B Capacitor Included No Capacitor Rating 12.5/370
