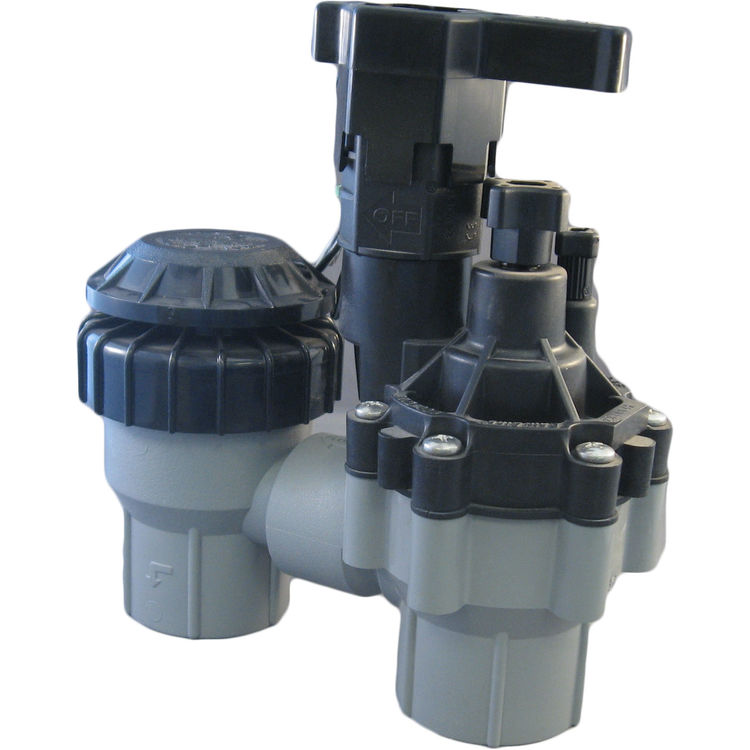

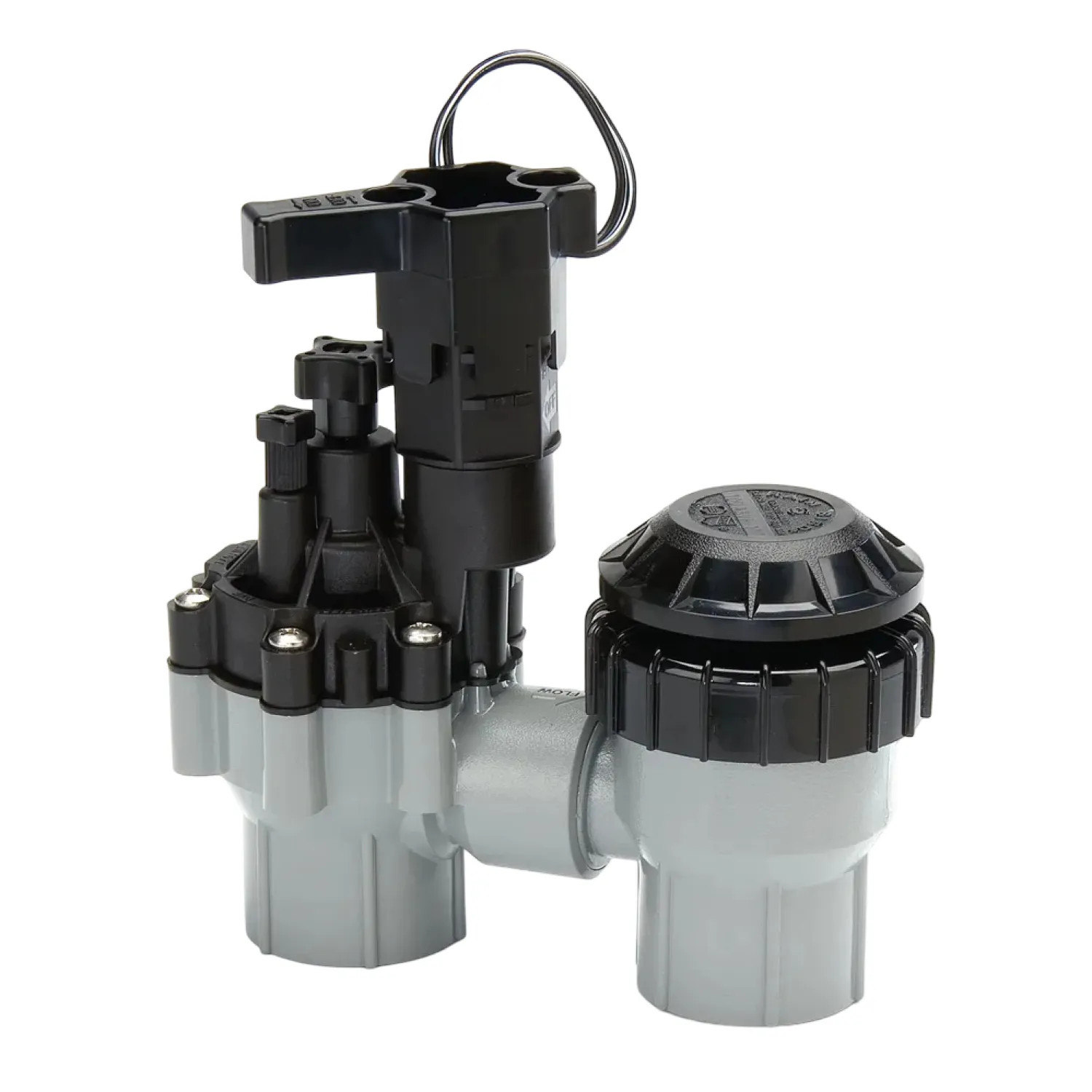

Rain Bird DAS/ASVF100 - 1" Sure Flow Automatic Anti-Siphon Valve

SKU: 7266
-39.8%
$ 24 .79 / ea
$ 41 .16 / ea
visa mastercard american-express discover paypal crypto
Qty
inventory_2 6 in Stock
add_shopping_cart Add To Cart
local_shipping In Stock and Ready to Ship
warehouse Ships from Cedar City Utah Warehouse
add More Buying Options  from $24.79
Manufacturer
$ 24 .79 / ea
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer
inventory_2 Unlimited Availability for Orders
add_shopping_cart Add To Cart
Free Sprinkler Design

About the Rain Bird DAS/ASVF100 - 1" Sure Flow Automatic Anti-Siphon Valve

The Rain Bird DAS/ASVF-100 is a 1" FPT (female pipe thread) automatic anti-siphon valve with Sure Flow flow control. It features a 0.2 to 40 GPM flow, solenoid coil that resists up to 38 Ohms, and can function in ambient air temperatures of 125-degrees, and water temperatures of 110-degrees. Use Anti-Siphon valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required.  This valve is compatible with any standard sprinkler timer.

Use: Water
Electrical Voltage: 24 Volt
Connection Type: Threaded
Manufacturer: Rainbird
Sprinkler Valve Features: Anti Siphon
Mpn # 100ASVF
Shipping Dimensions 6.3" x 3.0" x 7.0"
Weight 1.63 lbs.
  • 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
  • Combination reliable DVF valve and atmospheric backflow preventer in one unit
  • For use in cold water only, less than 110-degrees F (43 Degrees C)
  • Height: 6-1/4" (15,8 cm)
  • I.A.P.M.O. and A.S.S.E listing approved.
  • Incorporates all features of DV/DVF Series valves
  • Length: 6-1/10" (15,5 cm)
  • No valve can be located downstream of the anti-siphon valve.
  • Pressure: 15 to 150 PSI (1,0 to 10,4 bar)
  • Solenoid coil resistance: 38 Ohms
  • Width: 3-1/5" (8,1 cm)
  • 100-ASVF Flow: 0.2 to 40 GPM (0,05 to 9,08 m3/h; 0,01 to 2,52 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation products application, use RBY-100-200MX filter installed upstream.
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
  • Ambient air temperature: Up to 125 Degrees F (52 Degrees C)
  • Must be installed at least 6" (15,2 cm) above the highest point of water in the pipe and sprinklers it serves
  • Anti-siphon valves must not be operated continuously for more than twelve (12) hours
  • Canadian Standards Association approved
  • City of Los Angeles listing approved
