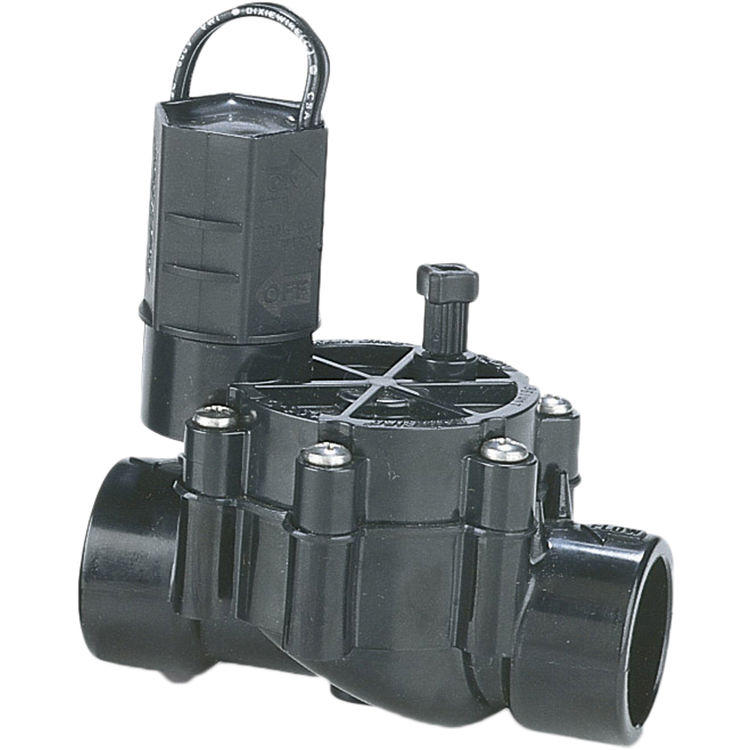

Rainbird 100DV 1" 24V Electric Diaphragm Valve

SKU: 7267

Save 34% · Retail: $24.50

In Stock and Ready to Ship!
More Buying Options

Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$16.19/ea 81
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Rainbird 100DV

Rainbird 100DV 1 24V Electric Control Valve. The Rain Bird 100DV is a 1" 24V Electric Control Valve. It features a double-filtered pilot-flow design for long-lasting reliability, a balanced-pressure diaphragm, external-bleed to manually flush the system of dirt and debris during installation and system start-up. It also features an internal bleed for spray-free manual operation, energy-efficient low-power encapsulated solenoid with captured plunger and 90-mesh solenoid filter.

Product Details

Manufacturer: Rainbird
Use: Water
Product Collection: Electronic
Electrical Voltage: 24 Volt
Connection Type: Threaded
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 100DV
Weight 0.95 lbs.

Product Features

  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • Balanced-pressure diaphragm for long life
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Double-filtered pilot-flow design for maximum reliability
  • Energy-efficient, low-power encapsulated solenoid with captured plunger
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Height: 4-1/2" (11,4 cm)
  • Internal bleed for spray-free manual operation
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream
  • Pressure: 15 to 150 PSI (1,0 to 10,4 bar)
  • Solenoid coil resistance: 38 Ohms
  • Width: 3-1/3" (8,4 cm)
  • 1.25" (3,2 cm) stainless steel phillips head screws
  • 100-DV Flow: 0.2 to 40 GPM (0,05 to 9,08 m3/h; 0,01 to 2,52 l/s); For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation application, use RBY-100-200MX Filter installed upstream


4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers


Hi, there! Yes, you can manually adjust the water flow. Please refer to page 2, step 13 of this specification sheet for instructions on how to operate the valve manually. For more information, call us @ 435-868-4020 or e-mail us @ Thank you and have a great day!


Hi, there! It depends on what part you are trying to replace. You can try and check out this parts catalog and determine what parts you are trying to replace. For more information, call us @ 435-868-4020 or e-mail us @ Thank you and have a great day!
