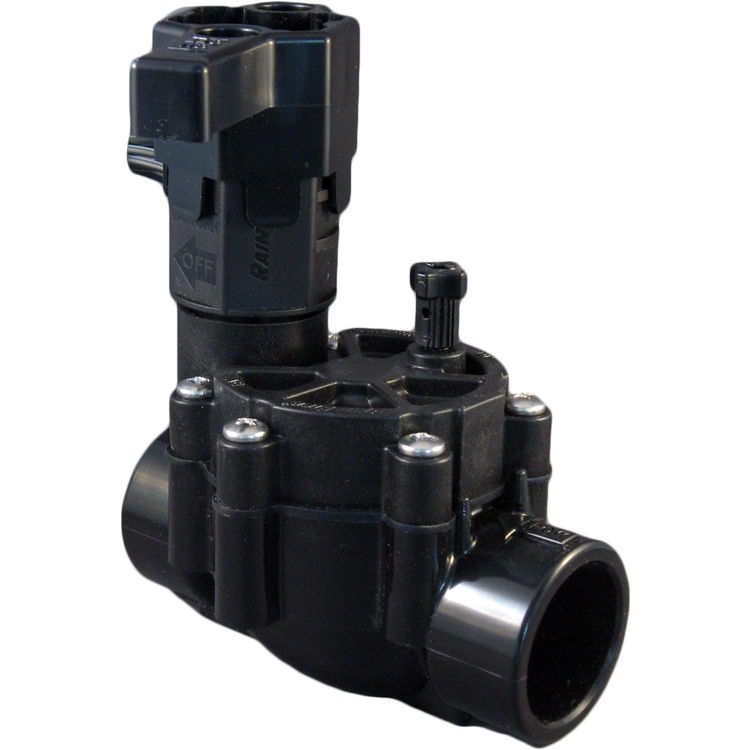

Rainbird 100DVSS 24 VAC 1" Electric Control Valve (Slip)

SKU: 41577

Save 48% · Retail: $24.50

In Stock and Ready to Ship

Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks

About the Rainbird 100DVSS

Rainbird 100DVSS 1 Electric Control Valve 24Vac. The Rain Bird 100DVSS is a 1" 24V Electric (Slip x Slip) Control Valve. It features a double-filtered pilot-flow design for long-lasting reliability, a balanced-pressure diaphragm, external-bleed to manually flush the system of dirt and debris during installation and system start-up. It also features an internal bleed for spray-free manual operation, energy-efficient low-power encapsulated solenoid with captured plunger and 90-mesh solenoid filter.

Product Details

Manufacturer: Rainbird
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 100DVSS
Weight 0.95 lbs.

Product Features

  • 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • Ambient air temperature: up to 125-degrees F (52 Degrees C)
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
  • Double-filtered pilot-flow design for maximum reliability
  • Energy-efficient, low-power encapsulated solenoid with captured plunger
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream
  • Pressure: 15 to 150 PSI (1,0 to 10,4 bar)
  • Solenoid coil resistance: 38 Ohms
  • 1" (26/34) Slip-by-Slip (SS) configuration for low cost, solvent-weld installations
  • 1.25" (3,2 cm) stainless steel phillips head screws
