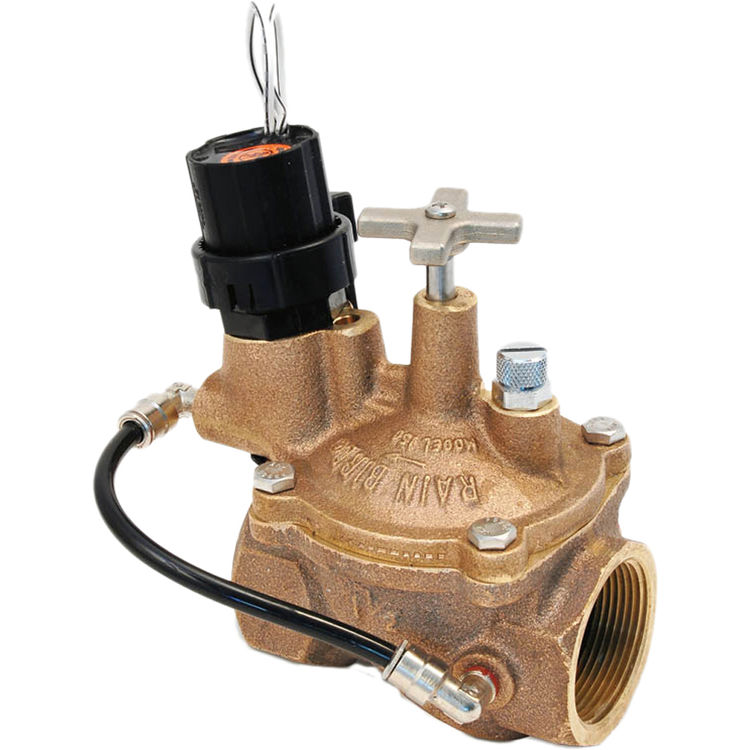

Rainbird 100EFBCP 24 VAC 1" Electric Control Valve

SKU: 41605

$100.54/ea

Save 49% · Retail: $195.80

Available to Ship in 4-5 weeks

Ships From	Price	Qty
Order From Manufacturer Available to Ship in 4-5 weeks	$100.54/ea	∞

About the Rainbird 100EFBCP

Rainbird 100EFBCP 1 Electric Control Valve 24Vac. The Rain Bird 100EFBCP is a 1" Electric Control Valve. It features red brass construction for long-lasting durability, and a contamination-proof, self-flushing screen that cleans itself and resists debris build-up in dirty water.

Product Details

Manufacturer:	Rainbird
Sprinkler Valve Features:	Globe Valve/ Angle Valve
Mpn #	100EFBCP
Weight	3.13 lbs.

Product Features

0.28 A (6.7 VA) holding current
Adjustable flow control.
Coil resistance: 30-39 ohms
Contamination-proof, self-flushing nylon (EFB-CP) or stainless steel (EFB-CP-R) screen resists debris build-up. Water flow continuously flushes the screen, dislodging particles and debris before they can accumulate and clog the filter.
Flow with/without PRS-D: 5 to 200 GPM (1.14 to 45,40 m3/h; 0,32 to 12,60 l/s)
Fluid resistor slows flow through the solenoid, reducing closing speed and preventing water hammer and system damage.
Low-power requirement allows for longer wire runs without increased wire gauge.
Manual internal and external bleed.
One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
Optional purple flow control handle for non-potable water applications (EFB-GB-NP-HAN).
Pressure: 15 to 200 psi (1,04 to 13,80 bar)
0.41 A (9.84 VA) inrush current
Red brass body and bonnet for longer life and more rugged performance at 200 psi (13,80 bar).
Reverse flow feature ensures valves fail in the closed position if the diaphragm tears or rips. Prevents flooding, water waste and landscape damage.
Temperature: up to 150 Degrees F (66 Degrees C)
100-EFB-CP-R 6" (15.2 cm) x 4 1/2" (11.4 cm) x 3 1/4" (8.3 cm)
125-EFB-CP-R 5 3/4" (14.6 cm) x 5" (12.7 cm) x 3 1/4" (8.3 cm)
150-EFB-CP-R 6 1/2" (16.5 cm) x 5 1/2" (14 cm) x 4 1/2" (11.4 cm)
200-EFB-CP-R 7" (17.8 cm) x 6 3/4 " (17.1 cm) x 5 3/4" (14.6 cm) Note: The PRS-D option adds 2" (5.1 cm) to the valve height.
24 VAC 50/60 Hz (cycles per second) solenoid
Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bar).
Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance.

Resources

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

Anonymous asked:

There is a repair kit ?

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for posting your question at PlumbersStock.com. Yes, there are repair kits available for this Rainbird 100EFBCP electric control valve. You can refer to this parts list and see the EFB-CP model table. Take a look at the first column with the model number "100" on it. You will see a list of assembly/replacement/repair kits. Hope this helps. You can search PlumbersStock.com the specific part that you need. If the product is not listed on PlumbersStock.com, you can us call at 435-868-4020 and place an order. Our customer service representatives will be happy to help you out. Thank you and we hope to see you again here at PlumbersStock.com!
