Rainbird 150EFBCP 24 VAC 1-1/2" Electric Control Valve

SKU: 41607

Save 45% · Retail: $315.00

  Available to Ship in 1-2 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks

About the Rainbird 150EFBCP

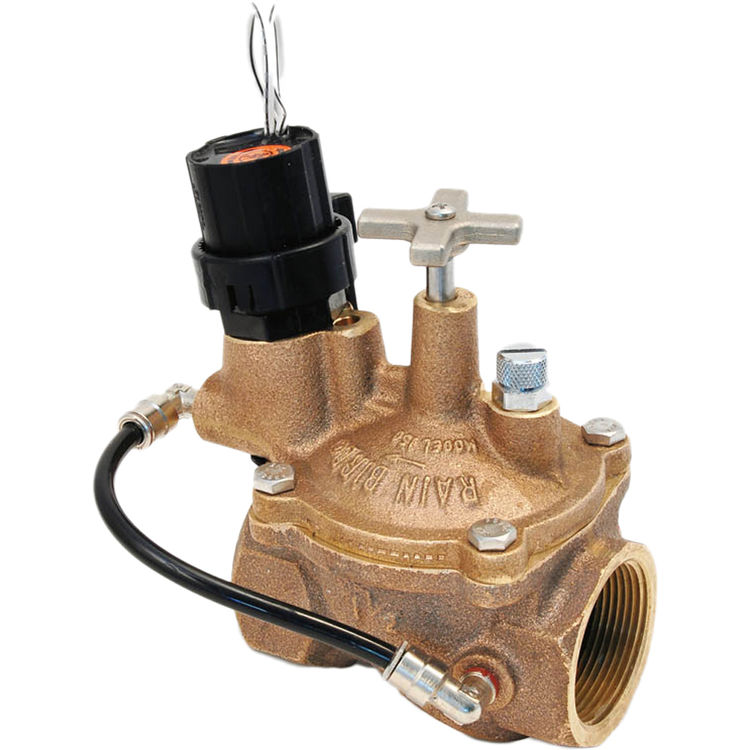

Rainbird 150EFBCP 1-1/2 Electric Control Valve 24Vac. The Rain Bird 150EFBCP is a 1-1/2" 24V-AC Electric Control Valve. It features red brass construction for long-lasting durability, and a contamination-proof, self-flushing screen that cleans itself and resists debris build-up in dirty water.

Product Details

Manufacturer: Rainbird
Mpn # 150EFBCP
Weight 4.96 lbs.

Product Features

  • 0.28 A (6.7 VA) holding current
  • Adjustable flow control.
  • Coil resistance: 30-39 ohms
  • Contamination-proof, self-flushing nylon (EFB-CP) or stainless steel (EFB-CP-R) screen resists debris build-up. Water flow continuously flushes the screen, dislodging particles and debris before they can accumulate and clog the filter.
  • Flow with/without PRS-D: 5 to 200 GPM (1.14 to 45,40 m3/h; 0,32 to 12,60 l/s)
  • Fluid resistor slows flow through the solenoid, reducing closing speed and preventing water hammer and system damage.
  • Low-power requirement allows for longer wire runs without increased wire gauge.
  • Manual internal and external bleed.
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
  • Optional purple flow control handle for non-potable water applications (EFB-GB-NP-HAN).
  • Pressure: 15 to 200 psi (1,04 to 13,80 bar)
  • 0.41 A (9.84 VA) inrush current
  • Red brass body and bonnet for longer life and more rugged performance at 200 psi (13,80 bar).
  • Reverse flow feature ensures valves fail in the closed position if the diaphragm tears or rips. Prevents flooding, water waste and landscape damage.
  • Temperature: up to 150 Degrees F (66 Degrees C)
  • 100-EFB-CP-R 6" (15.2 cm) x 4 1/2" (11.4 cm) x 3 1/4" (8.3 cm)
  • 125-EFB-CP-R 5 3/4" (14.6 cm) x 5" (12.7 cm) x 3 1/4" (8.3 cm)
  • 150-EFB-CP-R 6 1/2" (16.5 cm) x 5 1/2" (14 cm) x 4 1/2" (11.4 cm)
  • 200-EFB-CP-R 7" (17.8 cm) x 6 3/4 " (17.1 cm) x 5 3/4" (14.6 cm) Note: The PRS-D option adds 2" (5.1 cm) to the valve height.
  • 24 VAC 50/60 Hz (cycles per second) solenoid
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bar).
  • Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
