About the Rainbird 1804SAMP45

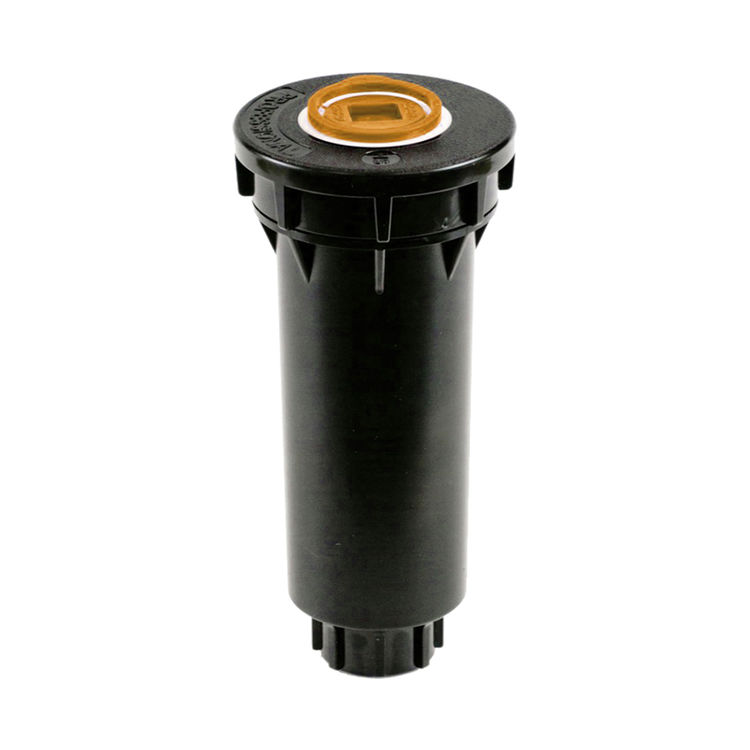

Rainbird 1804SAMP45 Spray Head Body W/Prs 4 Pop-Up. The Rain Bird 1804-SAM-P45 is a 4" Pop-Up Spray Head with built-in Seal-A-Matic Check Valve (45 PSI). This spray head offers a built-in Seal-A-Matic check valve that eliminates the need for under-the-head check valves. This spray head prevents drainage from spray heads at lower elevations, stops water waste, and ends landscape damage due to flooding and/or erosion.

Product Details

Product: Pop-Up Sprayer
Manufacturer: Rainbird
Faucet Part Feature: Body
Product Collection: Odin
Mpn # 1804SAMP45
Shipping Dimensions 6.0" x 2.3" x 2.3"
Weight 0.25 lbs.

Product Features

  • "SAM-PRS-45" stamped on cap for easy identification and maintenance.
  • Spacing: 13 to 24 feet (4.0 to 7.3 m)
  • Body height: 1804-SAM-P45: 6" (15 cm) 1806-SAM-P45: 9 3/8" (24 cm) 1812-SAM-P45: 16" (40 cm)
  • Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.1 GPM (0.02 m3/h; 0.006 l/s) otherwise
  • Includes Seal-A-Matic check valve preventing low head drainage of up to 14 feet of head.
  • Installation: bottom inlet only
  • Pressure: 25 to 70 psi (1.7 to 4.8 bar)
  • Provides 45 psi in-stem pressure regulation for maximizing efficiency or Rotary Nozzles.
  • Regulates nozzle pressure to an average 45 psi (3.1 bar) with inlet pressures of up to 70 psi (4.8 bar)
  • SAM capability: holds up to 14 feet (4.,2 m) of head; 6 psi (0.3 bar)

Reviews

Rated 5 out of 5 based on 1 reviews


 Rated 5 by Steve P.
Fixed the leak I had at the sprinkler head! Thanks!!
Originally posted on PlumbersStock May/2017

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Hi there! Thank you for asking about the Rainbird 1804SAMP45. To put the nozzle in, you need to pull the stem out and thread the nozzle. The nozzle is threaded for the 1800 series sprinklers. If this is what you need, start placing your order by adding it to your cart. Thank you for posting a question here at PlumbersStock. We are glad to help you!
