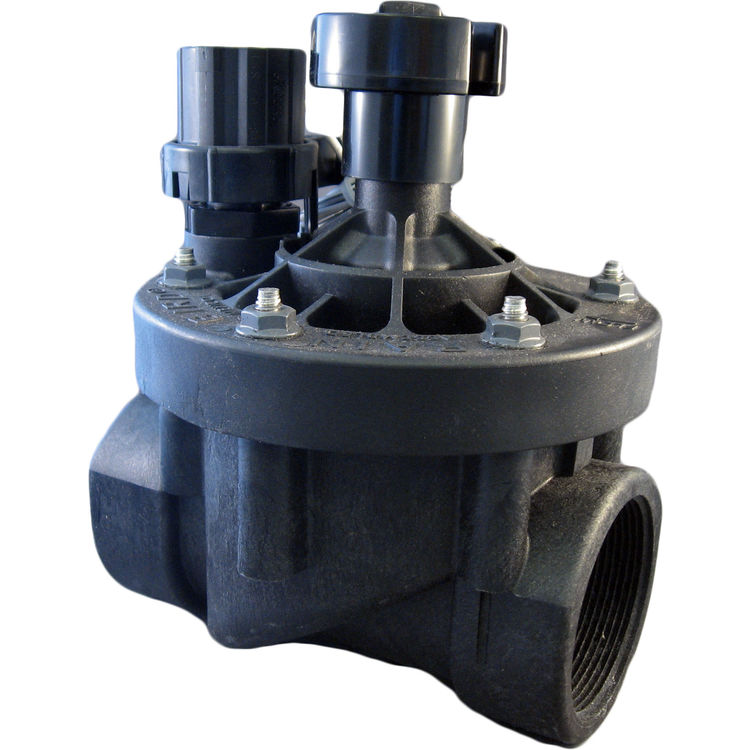

Rainbird 200PEB 24 VAC 2" Commercial Electric Valve

SKU: 7280
Minimum Quantity: 1

$104.81/ea
Save 46% · Retail: $194.25

In Stock and Ready to Ship!
More Buying Options


Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$104.81/ea 9
Order From Manufacturer
Available to Ship in 4-5 weeks
$104.81/ea

About the Rainbird 200PEB

Rainbird 200PEB 2 Electric Valve 24Vac. The Rain Bird 200PEB is a 2" 24V-AC Commercial Electric Control Valve. This valve set features a durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long-lived reliability, a globe configuration, closed, forward flow design, slow closing for preventing the water hammer and subsequent system damage, and a low-flow capability for a wide range of applications. It also features a single-piece solenoid design with captured plunger and spring for easy servicing; flow control handle adjusts water flows as needed; a manual internal bleed that manually operates the valve without allowing water into the valve box, allowing the pressure regulator to be adjusted without turning the valve on at the controller first; a manual external bleed that permits flushing debris from the system, most recommended for system start up and after repairs; and stainless steel studs that are molded into the body, making the bonnet more easily attached and removed with less of a chance of damaging any threads.

Product Details

Manufacturer: Rainbird
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 200PEB
Weight 3.23 lbs.

Product Features

  • 0.28 A (6.7 VA) holding current
  • Flow control handle adjusts water flows as needed
  • Globe configuration
  • Low flow capability for a wide range of applications
  • Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs
  • Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first
  • Normally closed, forward flow design
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
  • 0.41 A (9.8 VA) inrush current
  • Pressure: 20 to 200 PSI (1,4 to 13,8 bar)
  • Slow closing to prevent water hammer and subsequent system damage
  • Solenoid coil resistance: 24 Ohms, nominal
  • Stainless steel studs molded into the body, bonnet can be attached and removed more easily and more often without damaging threads
  • Temperature: up to 150-degrees F (66 Degrees C)
  • Measurements: 8" x 6" x 6" (20,3 cm) x (15,2 cm) x (15,2 cm)
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.41 A (9.8 VA) inrush current 0.28 A (6.7 VA) holding current
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance
  • Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
