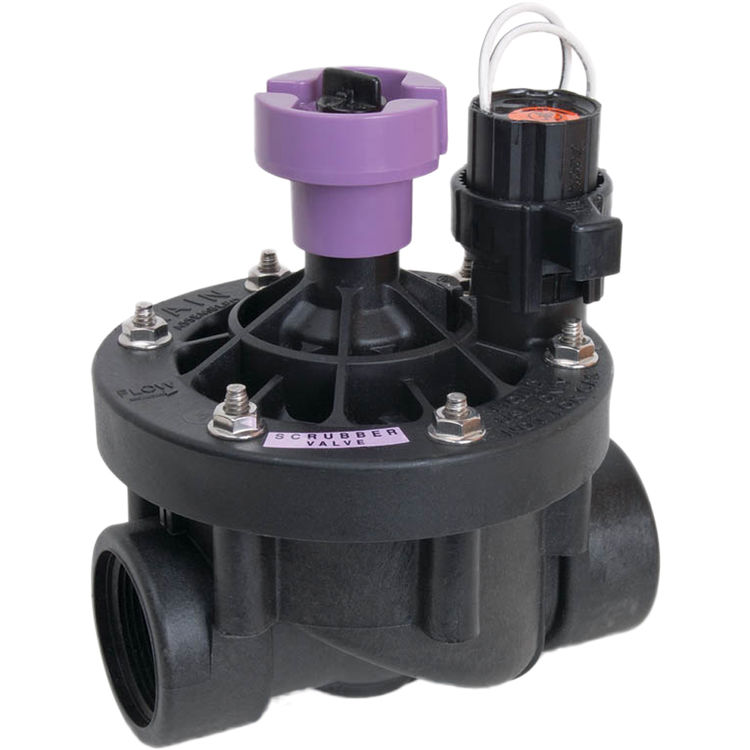

Rainbird 200PESBR 24 VAC 2" Electric Scrubber Valve

SKU: 41597
Minimum Quantity: 1

$127.02/ea
Save 50% · Retail: $252.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$127.02/ea

About the Rainbird 200PESBR

Rainbird 200PESBR 2 Electric Control Valve Scrubber. The Rain Bird 200PESBR is a 2" 24V-AC Commercial Electric Control Valve (Reclaimed Water Series). This valve set features a durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long-lived reliability, a globe configuration, closed, forward flow design, slow closing for preventing the water hammer and subsequent system damage, and a low-flow capability for a wide range of applications. It also features a single-piece solenoid design with captured plunger and spring for easy servicing; flow control handle adjusts water flows as needed; a manual internal bleed that manually operates the valve without allowing water into the valve box, allowing the pressure regulator to be adjusted without turning the valve on at the controller first; a manual external bleed that permits flushing debris from the system, most recommended for system start up and after repairs; stainless steel studs that are molded into the body, making the bonnet more easily attached and removed with less of a chance of damaging any threads; and a nylon scrubber that scrapes a stainless steel screen to clean and break down any grit and plant material, preventing debris build-up and clogging.

Product Details

Manufacturer: Rainbird
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 200PESBR
Shipping Dimensions 23.0" x 15.5" x 8.0"
Weight 3.12 lbs.
Shipping Dimensional Weight 16.17 lbs.

Product Features

  • Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bars).
  • Internal bleed operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning on the valve at the controller first.
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
  • Plastic diaphragm and scrubber components molded of chlorine- and chemical-resistant plastic material.
  • Power: 24 VAC 50/60 cycle solenoid
  • Pressure: 20 to 200 psi (1,38 to 13,80 bars)
  • Purple flow control handle standard on PESB-R Series valves.
  • Scrubber mechanism scrapes stainless steel screen clean to break down grit and plant material.
  • Slow closing to prevent water hammer and subsequent system damage.
  • Stainless steel studs molded into the body. Bonnet can be attached and removed easily without damaging threads.
  • Temperature: up to 150 Degrees F (66 Degrees C)
  • Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
  • Coil resistance: 23 - 29 Ohms
  • Durable glass-filled nylon construction for long life and heavy-duty performance at 200 psi (13,80 bars) pressure.
  • External bleed protects the solenoid ports from debris when system is flushed.
  • Flow with PRS-D: 5 to 200 GPM (1,14 to 45,40 m3/h; 0,32 to 12,60 l/s)
  • Flow: 0.25 to 200 GPM (0,06 to 45,40 m3/h; 0,02 to 12,60 l/s)
  • Holding current: 0.28 A (6.72 VA)
  • Inrush current: 0.41 A (9.84 VA)
