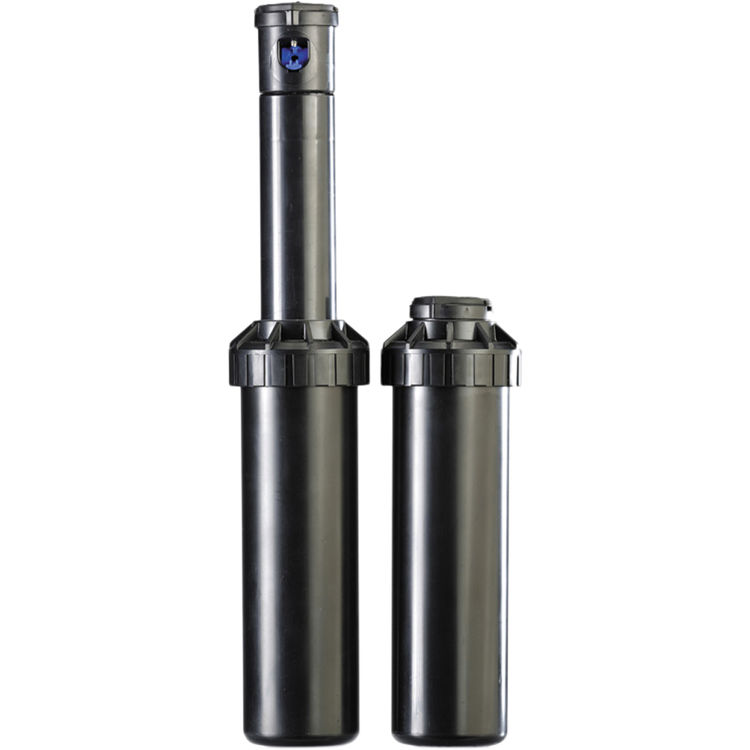

RainBird 3504PCS 3500-Series Part/Full-Circle 4" Popup Rotor with SAM

SKU: 163055
Save 25% · Retail: $18.00

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Rainbird 3504PCS

For residential applications, this compact, easy-to-use RainBird 3504PCS 3500-Series part/full-circle 4-inch popup rotor sprinkler offers value and convenience. The RainBird Model 3504PCS rotor (Product ID: Y34500) features a Seal-A-Matic (SAM) check valve that prevents puddling and erosion caused by low-head drainage, holding up to 7 feet (2.1 m) of elevation change. Within a single unit, and using only a flat-blade screwdriver, the arc of this RainBird 4-inch popup rotor can be adjusted from 40 to 360 degrees of reversing part-circle to full-circle rotation; and the radius can be reduced up to 35% without changing nozzles. A dual-action, positive-stop wiper seal keeps debris out, and a water-lubricated gear drive assures reliable operation. The filter screen and nozzle can be easily removed from this rotor, and it includes a nozzle tree of six Rain Curtain nozzles to meet various watering requirements. When changing nozzles, the self-adjusting stator does not need to be replaced. The RainBird 3504PCS 3500-Series part/full-circle 4-inch popup rotor sprinkler is backed by a three-year trade warranty. Founded in 1933, RainBird has a long-standing commitment to "The Intelligent Use of Water" and provides the industry's broadest range of irrigation products and services for agriculture, commercial developments, golf courses, sports venues, and homes in over 130 countries worldwide.

Product Details

Product: Rotor
Manufacturer: Rainbird
Degree: 40-360 Degrees
Use: Irrigation
Material: Plastic
Style: Adjustable Circle
Connection Type: Threaded
Mpn # 3504PCS

Product Features

  • 4-inch part/full-circle popup rotor sprinkler with Seal-A-Matic (SAM) check valve
  • Seal-A-Matic (SAM) check valve holds up to 7 feet (2,1m) of elevation change, to prevent puddling and erosion caused by low head drainage
  • 40 to 360 degrees part-circle arc rotation and reversing full-circle rotation in one unit
  • Top-adjust arc adjustment requires only a flat-blade screwdriver
  • Arc setting factory preset at 180 degrees for installation convenience
  • Quick Check Arc/Fast Forward
  • Attachable nozzle tree of six Rain Curtain nozzles
  • Radius adjustment screw allows up to 35% radius reduction without changing nozzles
  • Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
  • Self-adjusting stator does not require replacement when changing nozzles
  • Water-lubricated gear-drive design for durable, reliable operation
  • Easily removable filter screen for maintenance purposes
  • Nozzle removal slot
  • Standard rubber cover
  • Self-cleaning arc-adjustment screw
  • Precipitation rate: 0.37 to 0.83 inches per hour (9 to 21 mm/h)
  • Radius: 15 to 35 feet (4.6 to 10.7 m)
  • Pressure: 25 to 55 psi (1.7 to 3.8 bar)
  • Flow Rate: 0.54 to 4.6 gpm (2.0 to 17.4 l/m)
  • 12-inch (20/27) NPT female bottom-threaded inlet
  • Popup height: 4 inches (10.2 cm), measured from cover to center of nozzle
  • Overall body height: 6.6 inches (16.8 cm), measured popped down
  • Exposed surface diameter: 1.16 inches (2.9 cm)
  • Three-year trade warranty
