Rainbird 65PJADJTNT Rainbird 65PJADJ-TNT - 1

Rainbird 65PJADJ-TNT - 1" Full or Part-Circle Impact Sprinkler with Nozzle

SKU: 29981
$ 213.97 / ea
Save 43% · Retail: $373.36

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"! In Stock and Ready to Ship


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$213.97/ea

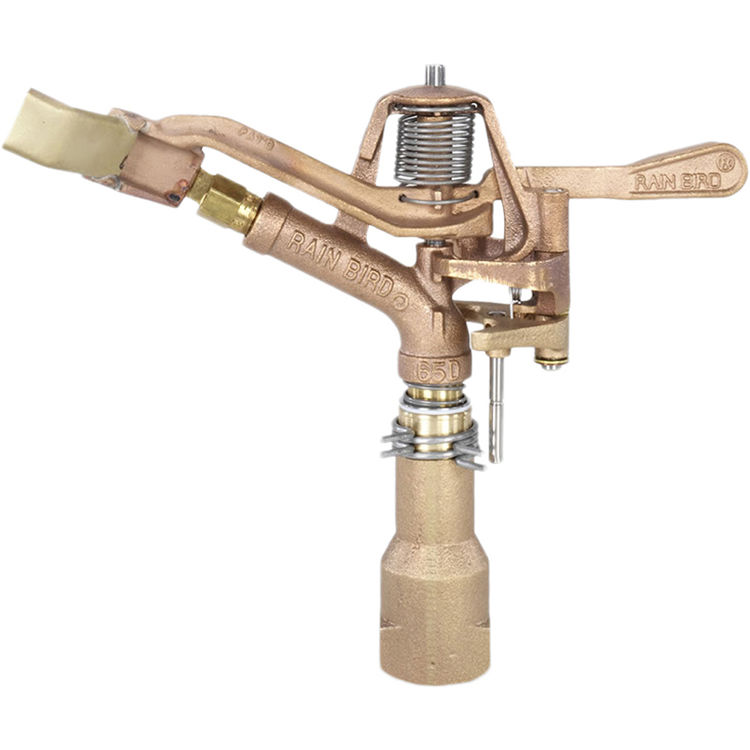

About the Rainbird 65PJADJ-TNT - 1" Full or Part-Circle Impact Sprinkler with Nozzle

The Rainbird 65PJADJ-TNT 1" adjustable impact sprinkler with nozzle (A4200316) is a full/part-circle brass head. It features a proven impact drive, a long-wearing TNT bearing, straight-through flow for superior performance in dirty water, a full-circle or adjustable arc from 20 - 340-degrees, and a Precision Jet tube that minimizes side splash. It also comes with a stainless steel distance control diffuser pin that allows up to 25% radius reduction; rugged brass, bronze, and stainless steel construction for long-lasting durability; and a F/P trip for switching between full- or part-circle operation. It's a 1" (26/34) riser-mounted impact head used for slope or large, non-turf-area applications.

Manufacturer: Rainbird
Mpn # 65PJADJTNT
Weight 5.00 lbs.
  • 1" (26/34) female NPT or BSP threaded inlet
  • Pressure: 50 to 80 psi (3,5 to 5,5 Bars)
  • Proven impact drive.
  • Radius: 57 to 65 feet (17,4 to 19,8 m)
  • Rugged brass, bronze and stainless steel construction.
  • Stainless steel distance control diffuser pin allows up to 25% radius reduction.
  • Straight-through flow for superior performance in dirty water.
  • Flow: 12.9 to 16.5 GPM (2,93 to 3,75 m3/h; 0,81 to 1,04 l/s)
  • For standard nozzle at normal operating pressure, the highest point of stream is 10 feet (3,1 m) above nozzle
  • FP trip for full- or part-circle operation.
  • Full-circle or adjustable arc 20 Degrees to 340 Degrees .
  • Long-wearing TNT bearing.
  • Nozzle outlet trajectory: 27 Degrees
  • Precipitation Rate: 0.76 to 0.94 inches per hour (19 to 23 mm/h)
  • Precision Jet tube (PJ) minimizes side splash.
