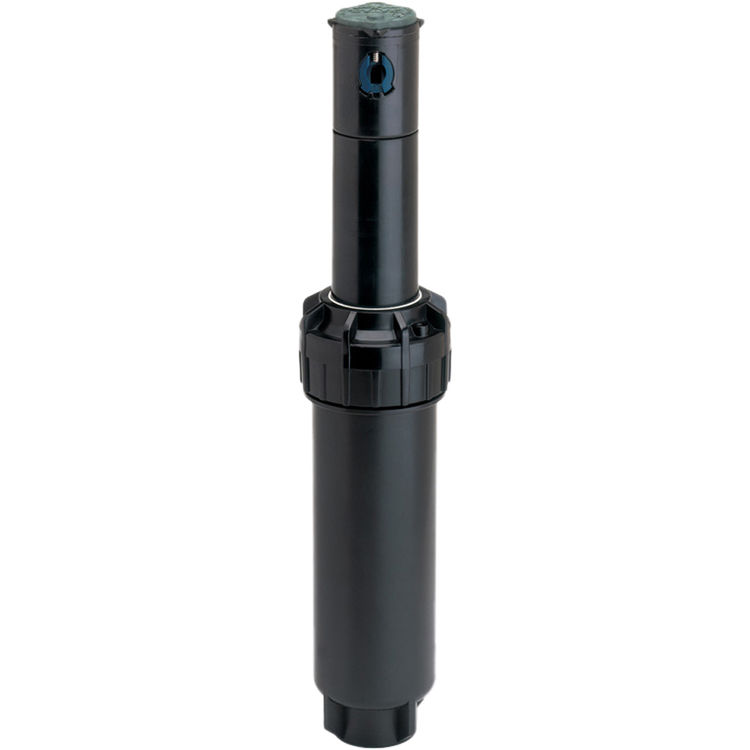

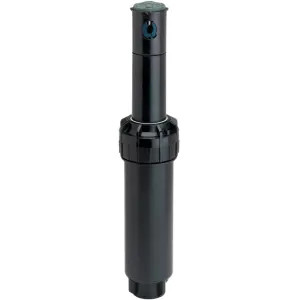

Rainbird 8005 1" Full/ Part Circle Rotor W/#24 Nozzle

SKU: 15209

$43.79/ea
Save 48% · Retail: $83.50

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$43.79/ea

About the Rainbird 8005

Rainbird 8005 Rotor W/#24 Nozzle. The Rain Bird 8005 is a 1" Full/Part Circle Rotor Pop-Up Sprinkler that features a Memory Arc rotor that returns to it's original arc setting, a non-strippable drive mechanism and brass reinforcing shaft of the nozzle turret to riser, making it resistant to most vandal damage, and a full/part circle operation in one unit to reduce inventory requirements.

Product Details

Manufacturer: Rainbird
Mpn # 8005
Weight 1.65 lbs.

Product Features

  • 04 - black
  • 20 - red
  • 22 - yellow
  • 24 - orange
  • 26 - white
  • Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick.
  • Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50 Degrees to 330 Degrees part-circle, 360 Degrees non-reversing full-circle.
  • Exposed diameter: 1 7/8" (4,8 cm)
  • Five year trade warranty.
  • Flow: 3.8 to 36.3 gpm (0.86 to 8.24 m3/h; 14.4 to 137.4 l/m) Note: Flow ranges of 7005 and 8005 are combined into 8005 rotor.
  • Full and part circle operation in one unit to reduce inventory requirements.
  • 06 - light blue
  • Heavy duty retract spring ensures positive pop-down.
  • Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection.
  • Memory Arc returns the rotor to its original arc setting.
  • Non-strippable drive mechanism prevents damage from vandals.
  • Nozzle outlet trajectory is 25ft.
  • Nozzles are interchangeable from the front with no special tools.
  • Optional Purple rubber cover for nonpotable applications.
  • Optional stainless steel riser model helps deter vandalism on public turf areas.
  • Overall diameter: 3 1/8" (7,9 cm)
  • Overall height: 10 1/8" (25,7 cm)
  • 08 - dark green
  • Pop-up height: 5" (12,7 cm)
  • Precipitation rate: 0.48 to 1.23 inches per hour (12 to 31 mm/h)
  • Pressure: 50 to 100 psi (3.5 to 6.9 bar)
  • Radius: 39 to 81 feet (11.9 to 24.7 m)
  • Rain Curtain nozzles for optimal distribution and close-in watering resulting in superior uniformity.
  • Rain Curtain Nozzles: 04 - black 06 - light blue 08 - dark green 10 - gray 12 - beige 14 - light green 16 - dark brown 18 - dark blue 20 - red 22 - yellow 24 - orange 26 - white
  • SAM check device holds up to 10 feet (3.1 m) of head.
  • Seal-A-Matic (SAM) check device/riser to help prevent low head drainage.
  • Self-adjusting turbine stator allows nozzle replacement with no other adjustments required.
  • Standard rubber cap. (Green)
  • 1" (26/34) NPT or BSP female threaded inlet.
  • Water-lubricated gear drive.
  • 10 - gray
  • 12 - beige
  • 14 - light green
  • 16 - dark brown
  • 18 - dark blue
