Rainbird F4FCSS Rainbird F4FCSS (B65511) Stainless Steel Falcon Full Circle Sprinkler - No Nozzle

Printer friendly page

Rainbird F4FCSS (B65511) Stainless Steel Falcon Full Circle Sprinkler - No Nozzle

SKU: 18189

Save 40% · Retail: $74.50

In Stock and Ready to Ship

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Rainbird F4FCSS

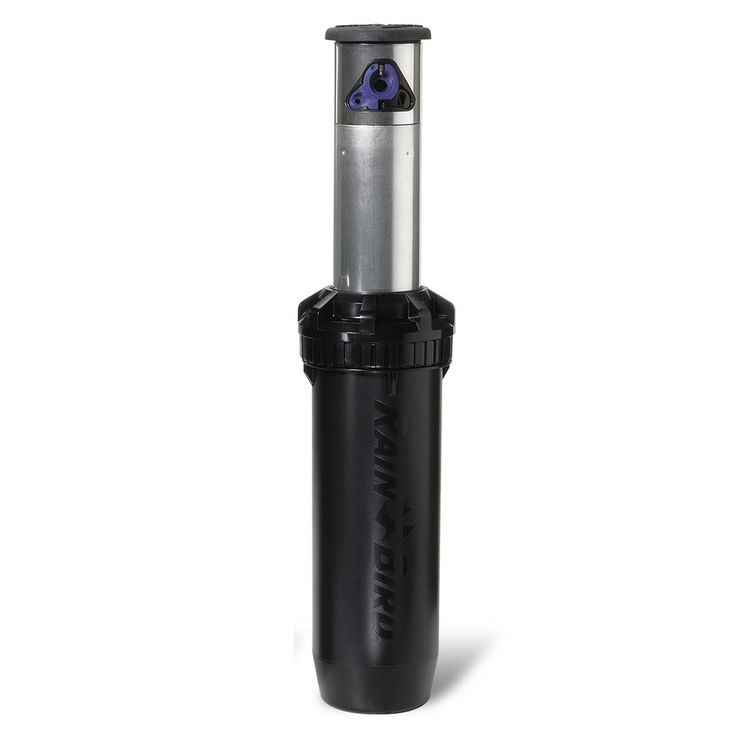

The Rain Bird F4FCSS is a full-circle rotor pop-up sprinkler with a stainless steel shaft from the Falcon 6504 series. This sprinkler is ideal for a wide variety of turf sites such as parks, cemeteries, fields, and schools and other commercial sites that has a spacing of up to 65 feet (19,8 m).

It comes with awesome features like a water-lubricated gear drive that ensures a reliable rotation, a standard black rubber cover, and a removable Seal-A-Matic check device to prevent puddling and erosion due to low-head drainage. It is equipped with a self-adjusting stator that doesn't need to be replaced when changing the nozzles while the nozzles can be changed anytime without the need to use any special tools! On top of this, the patented pressure-activated wiper seal and tapered riser stem provide maximum protection that keeps debris from coming in. Please note that the nozzles are not included and must be purchased separately.

The Rainbird F4FCSS (B65511) is made to last a lifetime with its heavy-duty construction that offers superior, uncompromising performance. This sprinkler comes with a 5-year trade warranty. Save big when you purchase it here at PlumbersStock!

Product Details

Manufacturer: Rainbird
Product: Rotor
Style: Full Circle
Degree/Bend: 360 Degrees
Color: Stainless Steel
Height: 4"
Size: 1"
Mpn # F4FCSS
Weight 1.23 lbs.

Product Videos

RainBird Falcon 6504 Rotors

Product Features

  • Falcon 6504 Series
  • Coverage Radius: 39-65 ft
  • Inlet: 1"
  • Water-lubricated Gear Drive
  • SAM Seal-A-Matic Check Valve
  • Non-Potable / Reclaimed Water
  • Stainless Steel Riser
  • Pop-Up Height: 4"
  • Overall height: 8-1/2" (21,6 cm)
  • Pop-up height: 4" (10,2 cm)*
  • Exposed surface diameter: 2" (5,1 cm)
  • Note: Pop-up height measured from the cover to center of nozzle. Overall body height is measured popped down
  • Precipitation Rate: 0.37 to 1.14 inches per hour (9 to 29 mm/h)
  • Pressure: 30 to 90 psi (2,1 to 6,2 Bars)
  • Flow: 2.9 to 21.7 GPM (0,66 to 4,93 m3/h; 0,18 to 1,37 l/s)
  • 1 in. (26/34) female NPT or BSP threaded inlet
  • SAM check device holds up to 10 feet (3,1 m) of elevation change
  • Coverage Arc: 360 Full Circle
