Rainbird VB7RNDP Rainbird VB-7RND-P (A11481) 7

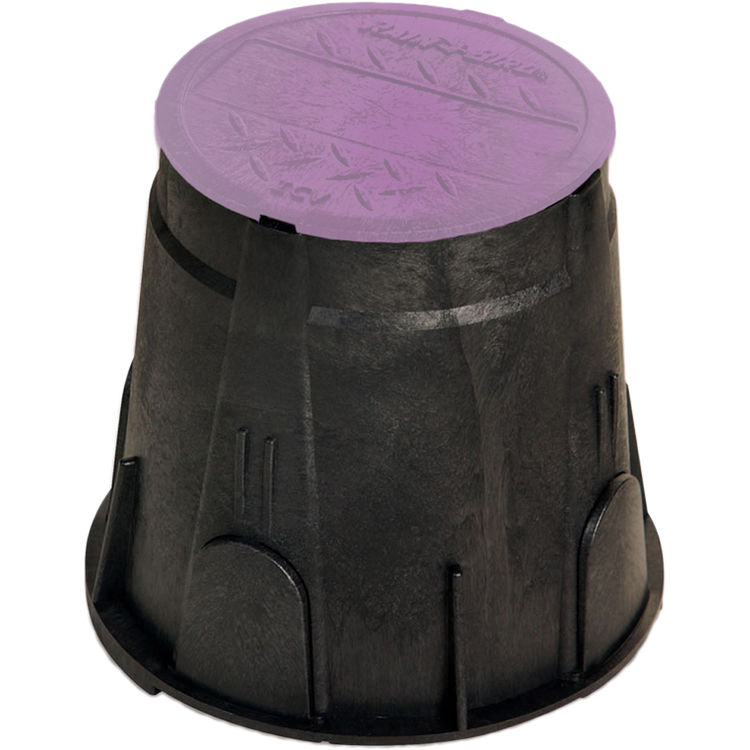

Rainbird VB-7RND-P (A11481) 7" Round Valve Box with Purple Lid

SKU: 41676

We are Sorry we no longer carry this item.

Check below for similar items!

About the Rainbird VB-7RND-P (A11481) 7" Round Valve Box with Purple Lid

The RainBird VB-7RND-P (part number A11481) is a 7" round valve box designed to protect a single in-ground irrigation valve or other subsurface irrigation system component. It includes a purple lid to indicate a non-potable water source. Snapping the lid shut secures it, and access slots make it easy to remove by inserting a screwdriver or a finger. The hole-free lid also helps keep out stinging and biting insects, snakes, and other creatures, minimizing risk and liability for the harm they might cause. Constructed of durable, high-density polyethylene (HDPE), this RainBird VB-7RND-P valve box resists damage from impact, UV light, weather, moisture, and soil contact. All of the black-colored parts of RainBird valve boxes are built from 100% recycled HDPE, making them environmentally friendly and LEED compliant. RainBird VB Series valve boxes feature corrugated sides, giving them greater compression strength and increased stability under heavy loads. Outside dimensions of the RainBird VB-7RND-P (part number A11481) are 9.0" high with diameters of 7.3" at the top and 9.9" at the base. On the inside, the diameters of the openings are 6.6" at the top and 8.5" at the bottom. A total of 4 knock-outs are easy to remove for placing pipe, and they can be slipped back into their retainers above pipes to stop backfill dirt from getting inside. This product is backed by a 5-year warranty. Founded in 1933, RainBird has a long-standing commitment to "The Intelligent Use of Water" and provides the industry's broadest range of irrigation products and services for agriculture, commercial developments, golf courses, sports venues, and homes in over 130 countries worldwide.

Manufacturer: Rainbird
Shape: Round
Product: Boxes and Covers
Mpn # VB7RNDP
Weight 1.90 lbs.
  • Easily removable knock-outs simplify pipe placement and reduce installation time. Four equally spaced knock-outs accommodate up to 2.0" diameter pipe.
  • Corrugated sides provide strength.
  • Lid snaps securely into place.
  • Lid can be removed by inserting a finger or screwdriver at access slots.
  • Interlocking bottoms allow boxes to mate securely together bottom-to-bottom for deep installations.
  • Made of sturdy, high-density polyethylene (HDPE) structural-foam resin, this valve box has superior resistance to impact, UV light, weather, moisture, and chemical action of soils.
  • All black bodies and black lids are constructed from 100% recycled materials, making them earth-friendly and LEED compliant.
  • Beveled lid edges help prevent damage to lids from lawn equipment.
  • No-hole lid design keeps insects and other pests out of the box.
  • Marking area on lid provides dedicated location for valve identification.
  • Available lid colors are green, black, and purple (to indicate non-potable water).
  • Height: 9.0" (22.9 cm)
  • Top Opening (diameter): 6.6" (16.8 cm)
  • Top Outer Dimensions: 7.3" (18.6 cm)
  • Bottom Opening: 8.5" (21.5 cm)
  • Bottom Outer Dimensions: 9.9" (25.0 cm)
  • Knockouts: 4 total (1 every 90 degrees; 3.5" H x 2.5" W (8.9 cm x 6.4 cm)
  • Industry-best, 5-year warranty.
