18X6 White Return Air Grille - Shoemaker 1075

SKU: 126164
   based on 1 Reviews
100% recommend this product

In Stock at manufacturer, ships quick!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

18X6 White Return Air Grille - Shoemaker 1075

SKU: 126164

Ships From Price Qty
Order From Manufacturer
Manufacturer, ships quickly

About the Shoemaker 1075-18X6

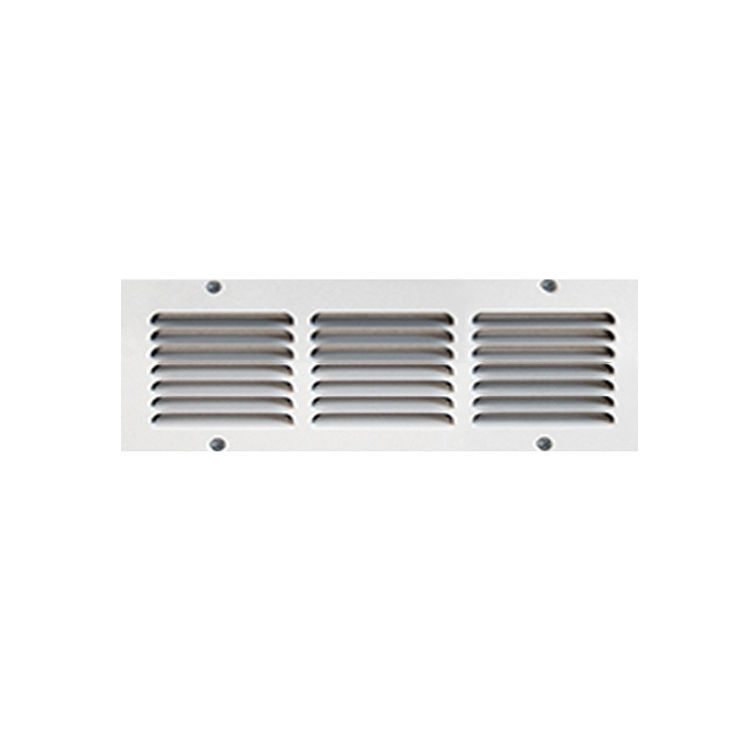

This White 18" x 6" Shoemaker 1075 Series Heavy-Duty Return Air Grille is designed to fit and cover an 18" wide by 6" high opening. This is the heavy duty version of the Shoemaker 1050. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this return air grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 1075 Series Heavy-Duty Return Air Grille is built from cold roll steel. Its angular louvers are spaced a half-inch apart. For extra durability, gussets are fully welded to the back of the mullions. For best duct concealment, the louvers are installed in up or down position. Multiple sizes of the grille are available to match the desired dimensions. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors and plated metal finishes are also available. The Shoemaker 1075 Series Baseboard Return Air Grille can be ordered with “F” Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to cover an 18" x 6" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Mpn # 1075-18X6
Weight 4.32 lbs.

Product Features

  • Standard colors are soft white and driftwood tan
  • Optional tamper-proof screws
  • Optional designer colors: almond, black velvet, bronze. Camaro silver, coffee tan, Navajo white, vanilla
  • Optional plated metal finishes: antique brass, black nickel, oil rub bronze, pewter, polished brass, polished chrome, satin nickel
  • 1/2 Inch Spacing Dual Angular Louvers
  • 22 & 20 Ga. Cold Roll Steel
  • Countersunk Mounting Holes For Flush Appearance With Color Matching Phillips Posi-Drive Screws
  • For Applications Where Greater Air Volume Is Required
  • Install With Louvers In the Up or Down Position For Best Duct Concealment
  • Mullions Are Reinforced With Stiffeners For Greater Strength


Rated 4 out of 5 based on 1 reviews

great price Rated 4 by Adam6897
  Yes, I recommend this product.
Got a good deal but was disappointed how long it took but this could of been due to holiday. I would use them again good product.
Originally posted on Jun/2016
