Sloan 3988231 Sloan Regal 9603-1.6-XL Hydraulic Prison Concealed Water Closet Flushometer - 1.6 gpf, Sloan 3988231

Product Options

Printer friendly page

Sloan Regal 9603-1.6-XL Hydraulic Prison Concealed Water Closet Flushometer - 1.6 gpf, Sloan 3988231

SKU: 93315
 Free Shipping!
Save 35% · Retail: $330.10

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3988231

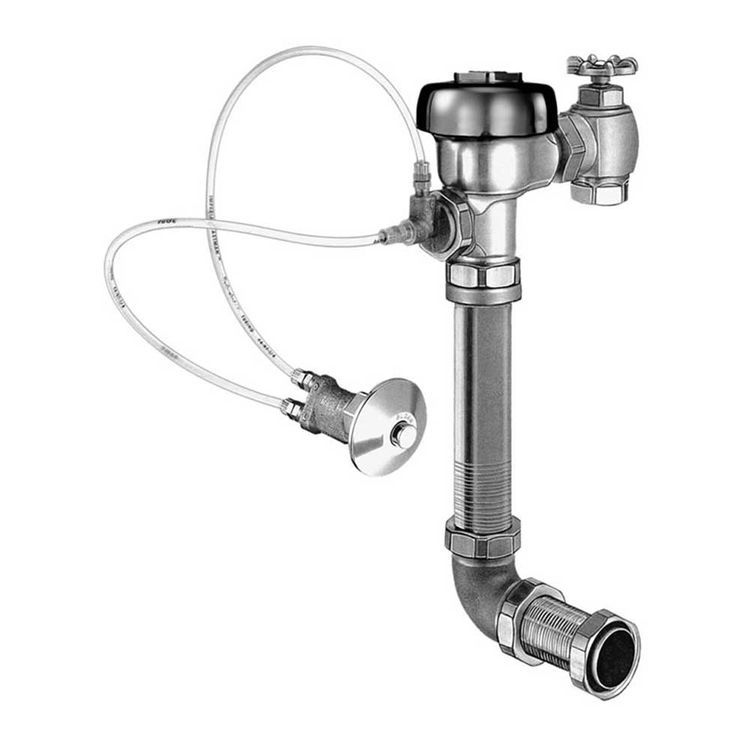

Sloan Regal 9603-1.6-XL Concealed Prison Chrome Plated Hydraulically Operated Closet Low Consumption Flush Valve. The Sloan Regal 9603-1.6-XL Complies with ADA Requirements with the Non-Hold Open Push Button, Water Saving 1.6 Gallon Per Flush Hydraulic type Flushometer also features a 1" IPS Bak-Check Wheel Handle Stop, Control Stop Plug, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan Regal 9603-1.6-XL is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product Details

Flush Valve Type: Concealed
Manufacturer: Sloan
Faucet Features: ADA
Style: Prison Model
  Impact Drill
Faucet Part Feature: Closet
Product: Back Spud Flush Valve
Product Collection: Regal
Mpn # 3988231
Weight 8.77 lbs.

Product Features

  • 14-1/2" Rough-In
  • Quiet, Concealed, Diaphragm Type, Rough Brass Closet Flushometer for either left or right hand supply
  • ADA Compliant Non-Hold-Open feature type Actuator (specify Actuator type listed below)
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece and Vacuum Breaker
  • Elbow Flush Connection and Coupling for 1-1/2" NPT Back Inlet (for connection in the pipe chase ? flush connection through the wall not provided by Sloan)
  • Exposed parts Chrome Plated
  • Sweat Solder Adaptor
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Push Button, Fixed Metering Bypass, No External Volume Adjustment to Ensure Water Conservation and Low Consumption Flush Accuracy
  • Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037.
