Sloan 3453223 Sloan Royal Optima 197 ESS-1.5-2-10-3/4-LDIM-HW Concealed Sensor Hardwired Urinal Flushometer (3453223)

Product Options

Printer friendly page

Sloan Royal Optima 197 ESS-1.5-2-10-3/4-LDIM-HW Concealed Sensor Hardwired Urinal Flushometer (3453223)

SKU: 93710
$1,024.69/ea
 Free Shipping!
Save 35% · Retail: $1,576.45

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$1,024.69/ea

About the Sloan 3453223

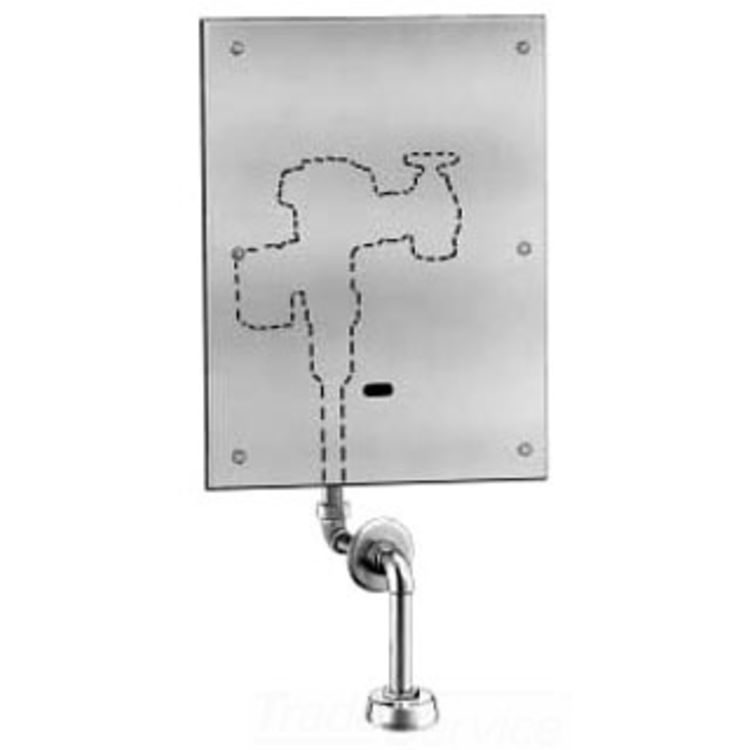

Sloan Royal 197 is a Concealed Sensor Operated Royal Model Urinal Flushometer enclosed behind a 13" x 17" Wall Box with Stainless Steel Access Panel, for top spud urinals. 1. 5 Gpf, ADA Compliant. Adjustable from 2 3/4 In. to 10 3/4 In. from center of valve to finished wall. Sloan Royal 197 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer.

Product Details

Product: Educational
  Top Spud Flush Valve
Manufacturer: Sloan
Style: Billiard Table
  Sensor Operated
Faucet Features: ADA
Product Collection: Royal
Mpn # 3453223
Weight 21.08 lbs.

Product Features

  • 2-3/4" 10-3/4" L Dimension
  • 1.5 gpf (5.7 Lpf)
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • OPTIMA EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
  • Non-Hold-Open Integral Solenoid Operator
  • 13" x 17" EASY ACCESS Wall Box with Stainless Steel Access Panel and Vandal Resistant Screws
  • 3/4" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection, Spud Coupling and Flanges for 3/4" Exposed Top Spud
  • Sweat Solder Adapter
  • Chrome Plated Exposed Flushometer Parts? High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
