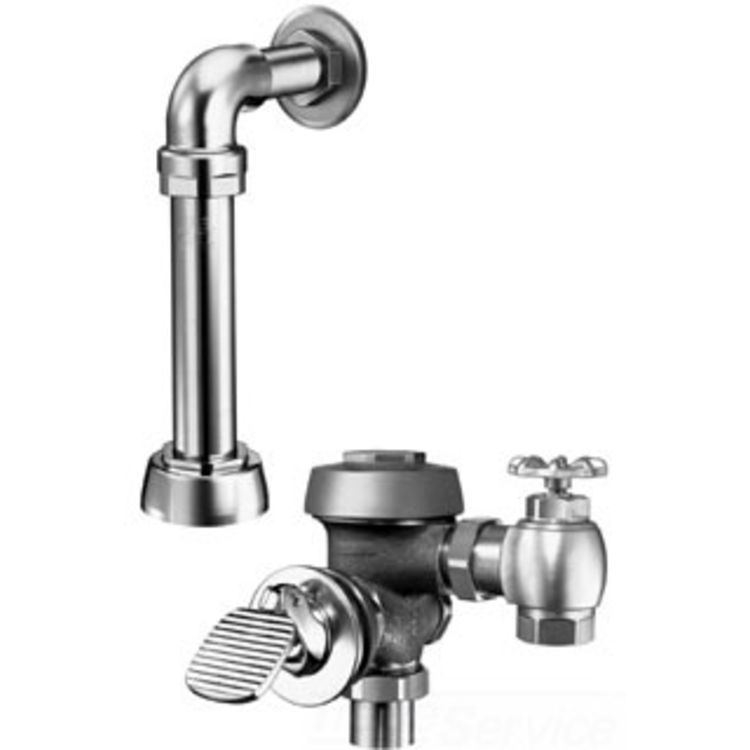

About the Sloan Royal 312-3.5-9-3/4-LDIM Exposed Manual Specialty Water Closet Foot Pedal Flushometer (3013770)

Slaon Royal 312 is a Concealed Water Closet Foot Pedal Flushometer, for top spud bowls. 3.5 gpf. 9 3/4" from center of valve to finished wall. Sloan Royal 312 is a Quiet, Concealed, Diaphragm Type, Rough Brass Closet Flushometer for either left or right hand supply.

Product: Educational
  Top Spud Flush Valve
Manufacturer: Sloan
Faucet Part Feature: Closet
Style: Watering Wand
  Pedal Flush
Product Collection: Royal
Mpn # 3013770
Weight 11.27 lbs.
  • 9-3/4" L Dimension
  • Quiet, Concealed, Diaphragm Type, Rough Brass Closet Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Metal Non-Hold-Open Foot Pedal with Triple Seal Handle Packing
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • 1"? Female I.P.S. Union Outlet
  • 1-1/4 Elbow Flush connection, Spud Coupling and Flanges from finished wall to 1-1/2" Top Spud
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Sweat Solder Adapter
  • Exposed Parts Chrome Plated
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Foot Pedal, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
